Process steam is a versatile manufacturing tool for heating certain types of manufacturing equipment, in-process goods, and for indirect heating of cooking equipment like jacketed kettles. It can also be used to clean and sterilize equipment. Electro-Steam's comprehensive line of all electric-fired miniature boiler steam generators can meet your needs for point-of-need process steam.
Manufacturers often use heat for different aspects of their production processes. Some examples of how process heat is used include melting, drying, cooking, curing, and pasteurizing. The heat can be generated by various means, including combustion of fuel, electricity, or steam to clean steam exchangers.
Typical applications
- Low pressure (15 psi) and high pressure (100 psi) process steam
- Standard carbon steel or 316L stainless steel construction
Standard Features
Every Electro-Steam process steam generator ships with the same safety and certification package:
Standard Features
| ASME Certified | High Pressure Safety Reset |
| UL Listed and labeled under UL 834 | Dual Pressure Controls (UL 353) |
| Low Level Cut-Off (LLCO) (UL 353) | Safety Relief Valve possessing the ASME V Mark |
Recommended Options (Non-Standard)
| Spare Parts Package | Motorized Automatic Flush & Drain (MAFD) |
| Single Service Transformer | 5-Micron Water Filter |
If your process calls for a pressure, capacity, or boiler material that is not listed here, Contact us today and our engineering team will size a generator for the application.
Explore the families
LG Series
Compact 10–40 kW electric steam generators built for general industrial process applications.
LB Series
Reliable workhorse units for beverage, winery, and industrial process steam.
DS Series
Double-stack 150–480 kW systems for the highest-volume industrial steam demands.
V-Block Series
V-Block configuration steam generators engineered for space-constrained industrial installations.
LG Series
The LG Series is Electro-Steam's compact process line, listing 18 models from 10 to 40 kW on a carbon steel boiler. Every size is built in three variants: High Pressure at 100 psi, Low Pressure at 15 psi, and a SteamBath configuration.
Available Series
| Series | kW range | Models | |
|---|---|---|---|
| LG 10-40 | 10 to 40 kW | 18 | View More Information |

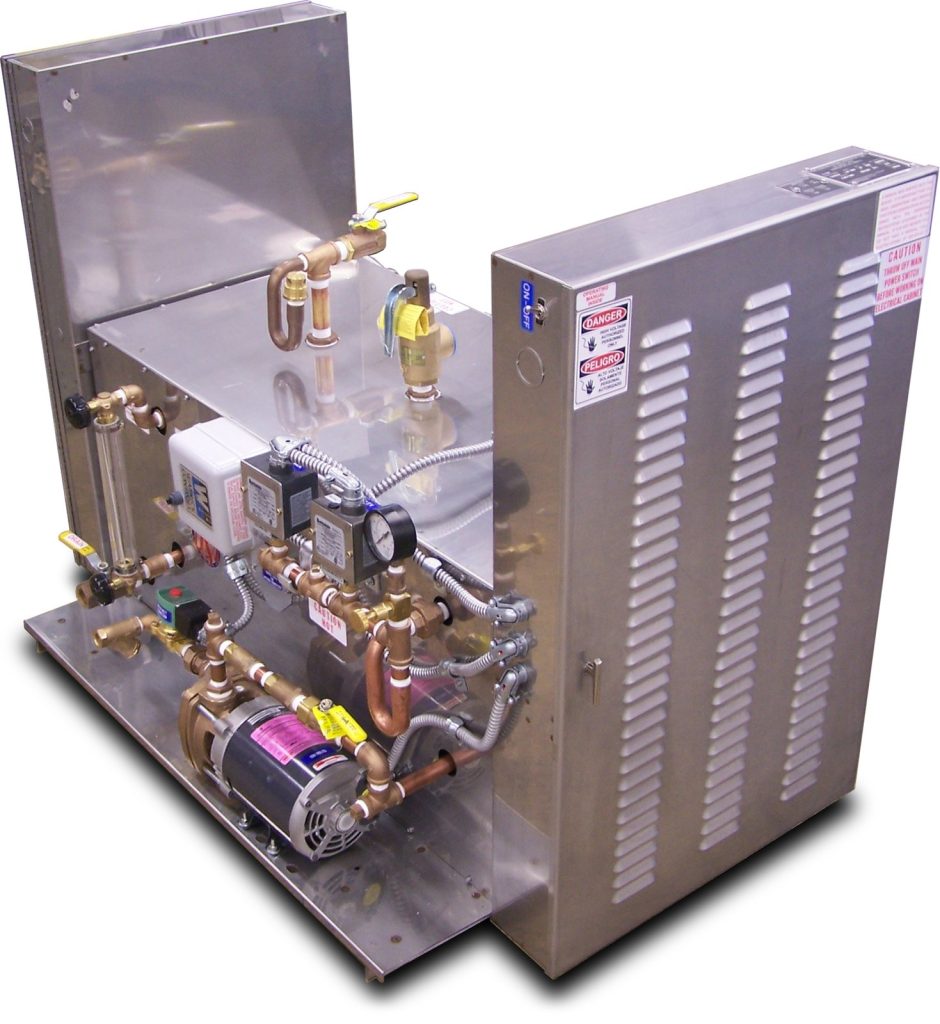

LB Series
The LB Series carries the same carbon steel construction into higher outputs, covering 40 kW to 240 kW across three model groups. LB 40-60 and LB 80 are each offered in High Pressure (100 psi), Low Pressure (15 psi), and Cleaner builds, while LB 100-240 is listed in High Pressure and Low Pressure only. Twenty-two models are published across the three groups.
Available Series
| Series | kW range | Models | |
|---|---|---|---|
| LB 40-60 | 40 to 60 kW | 9 | View More Information |
| LB 80 | 75 kW | 3 | View More Information |
| LB 100-240 | 100 to 240 kW | 10 | View More Information |

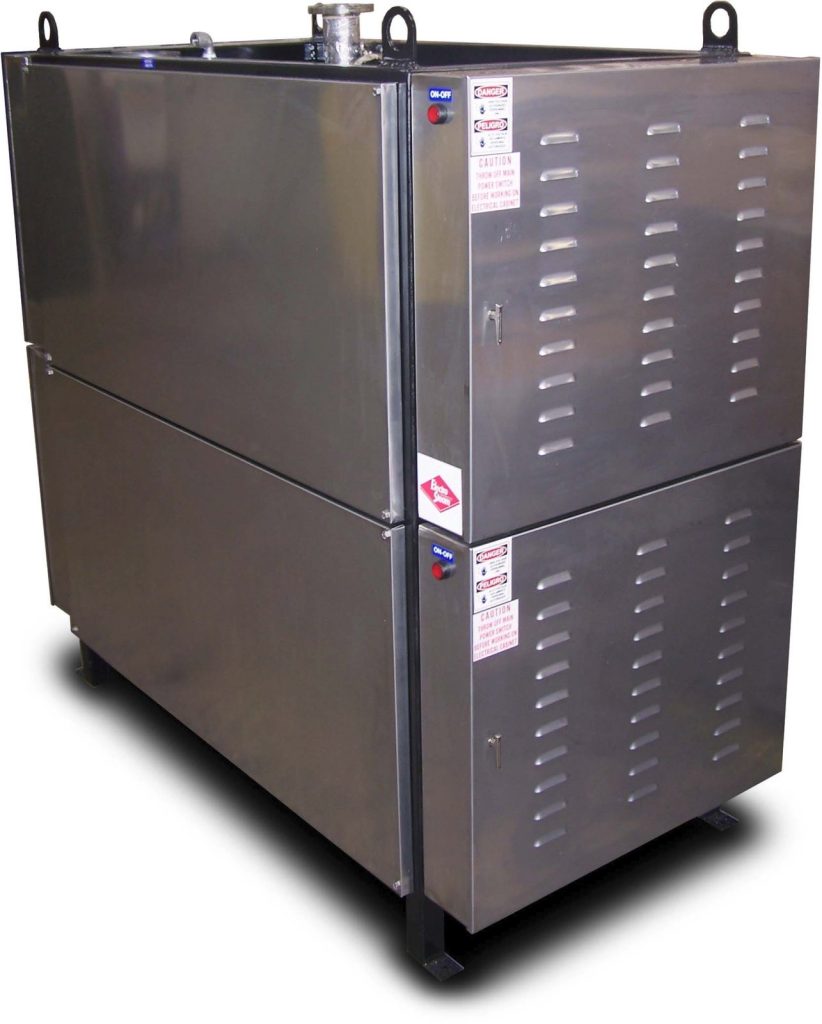

DS Series
The DS Series splits its output across multiple boiler boxes on one double-stack frame, covering 40 kW to 480 kW of process steam demand. DS 100-240 runs to 250 psi on carbon steel boilers, and DS 150-480 divides 150 to 480 kW across two or four boxes. The S.S. DS 100-240 group adds 316L stainless steel boiler options for sanitary and corrosion-resistant service.
Available Series
| Series | kW range | Models | |
|---|---|---|---|
| DS 100-240 | 40 to 480 kW | 8 | View More Information |
| DS 150-480 | 150 to 480 kW | 6 | View More Information |
| S.S. DS 100-240 | 40 to 480 kW | 9 | View More Information |

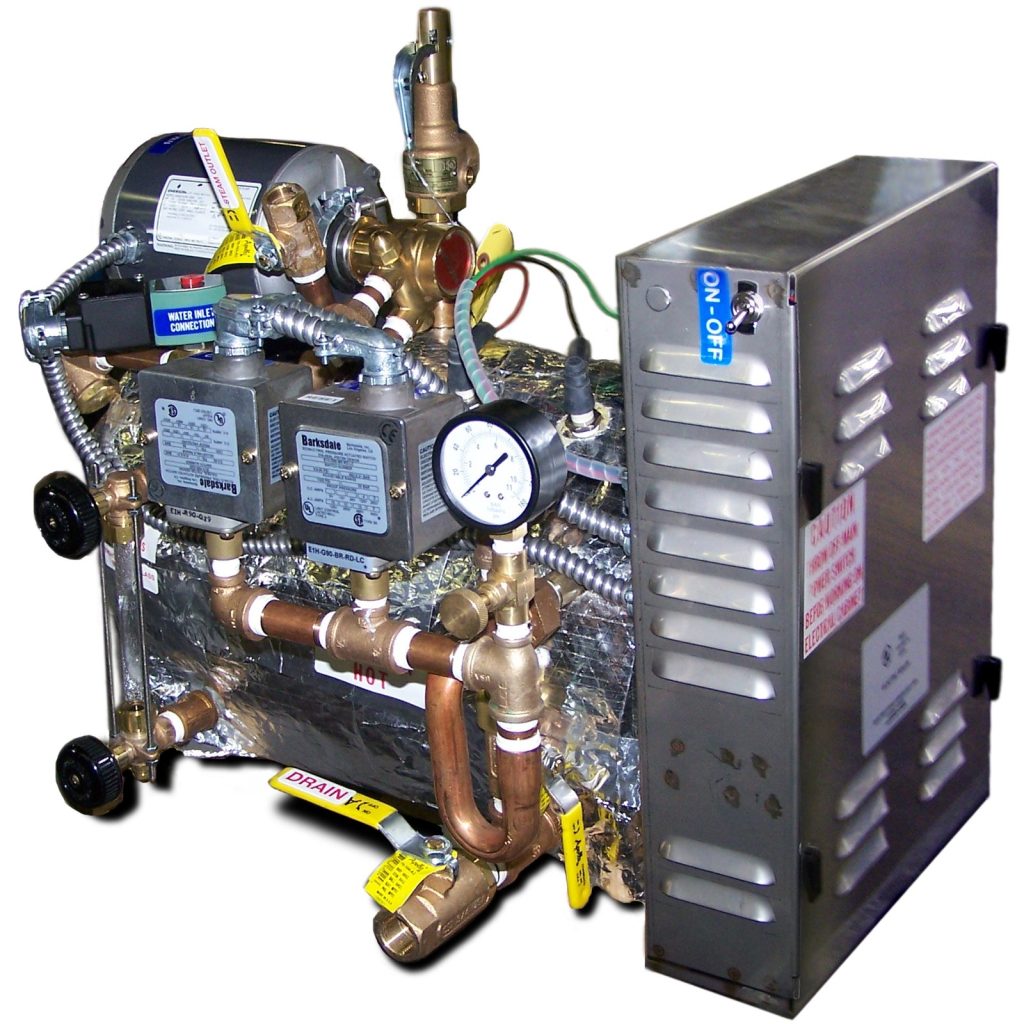

V-Block Series
The V-Block Series puts the same 10 to 40 kW output into a V-block boiler configuration for installations where floor space is tight. Six models are listed, all rated to 100 psi on a carbon steel boiler.
Available Series
| Series | kW range | Models | |
|---|---|---|---|
| VB 10-40 | 10 to 40 kW | 6 | View More Information |
SV 3.3-10 Electric Steam Generators have been discontinued. If you own a model and need replacement parts or a substitute model, please contact us. If you need a similar model, check out our LG 10-40 Electric Steam Generators.
Applications
Electro-Steam process generators supply point-of-use steam across a wide range of industrial and commercial applications:
- Brewery Steam. Electro-Steam Generators' LG and LB model line steam generators are the perfect source of high-quality saturated steam for micro-breweries, brewpubs, and smaller steam brewing systems.
- CIP / Process Steam. Process steam is a versatile manufacturing tool for heating certain types of manufacturing equipment, in-process goods, and for indirect heating of cooking equipment like jacketed kettles.
- Custom Requirements. Electro-Steam has provided companies around the world with safe, efficient, easy-to-use units for a very wide range of custom applications — from cleaning on offshore oil rigs to unloading molasses from trucks, and many others.
- Food Service Steam. Electro-Steam has manufactured high quality, reliable and efficient steam generators for commercial food service equipment since 1952.
- Humidification. Electro-Steam units can be used to supply humidity for a wide variety of important applications.
- Medical / Sterilization. Steam is commonly used in medical environments for sanitation procedures.
- Shrink Packaging. A shrink-sleeve tunnel offers 360-degree product coverage for all sorts of vessels like cans, bottles of all shapes and sizes, even items that require a tamper-evident seal.
- Steam Cleaning / Phosphating. Phosphating is vital in ensuring a proper finish of powder coated or painted parts.
- Steam Rooms / Baths / Showers. Electro-Steam is an industry-leading provider of superior steam shower generator systems.
- Wine Making / Bottling. In winemaking, flavor is paramount and can establish a label's reputation.
